Front-end Cylinders for Tipping trucks
JN provides full range of tipping solutions to meet your requirements. Our front-end cylinder series deliver you reliability, safety and efficiency tipping performance. Based on mounting style, we offer you FC, FE, FEE and Parker style front end hydraulic telescopic cylinder.
Cylinder Types
1. What Are the Main Front-End Hydraulic Cylinder Types?
Front-end hydraulic cylinders use hydraulic pressure to create the lifting movement required by a tipping truck. A telescopic design can provide a long working stroke while keeping the retracted length within the available frame space. The product names FC, FE, FEE, and Parker Type usually identify different product families or configuration references. The name itself does not confirm a fixed bore, stroke, stage count, closed length, mounting style, or port arrangement.
1.1 Why the Product Name Is Not Enough
Two cylinders with similar names may still have different mounting points, pin dimensions, port positions, or retracted lengths. A small difference can affect the lifting angle and installation clearance. For this reason, our engineering team reviews the customer’s drawing, sample, photographs, or measurements before confirming the final design.
2. Technical FAQ About Front-End Telescopic Cylinders
2.1 Are FC, FE, and FEE cylinders interchangeable?
Not automatically. These names refer to product families or configuration references. They do not confirm identical dimensions. Compare the drawing, mounting points, stroke, closed length, port layout, and hydraulic requirements before selecting a cylinder.
2.2 Is a Parker type telescopic cylinder an original Parker product?
The term “Parker type” does not prove original manufacture, brand authorization, or licensing. Confirm the product source, model information, drawing, and required dimensions before placing an order.
2.3 Can you make a front-end cylinder from a sample?
A sample can help our engineering team review the structure and dimensions. Please provide clear photographs, key measurements, and application information. We recommend confirming the final drawing before production.
2.4 How do I select the correct stroke?
Start with the required body movement and tipping angle. Then check the available retracted space and the final extended length. The selected stroke must support the tipping cycle without exceeding the mechanical limits.
2.5 Do you offer custom front-end hydraulic cylinders?
We can review custom configurations according to a customer drawing, sample, or application requirement. Bore, stroke, stage arrangement, mounting, ports, seals, and other options require technical confirmation.
2.6 What should I check before ordering a replacement cylinder?
Check the model reference, bore, rod, stroke, closed length, extended length, mounting dimensions, pin size, port position, working pressure, and circuit type. Similar appearance does not confirm a correct fit.

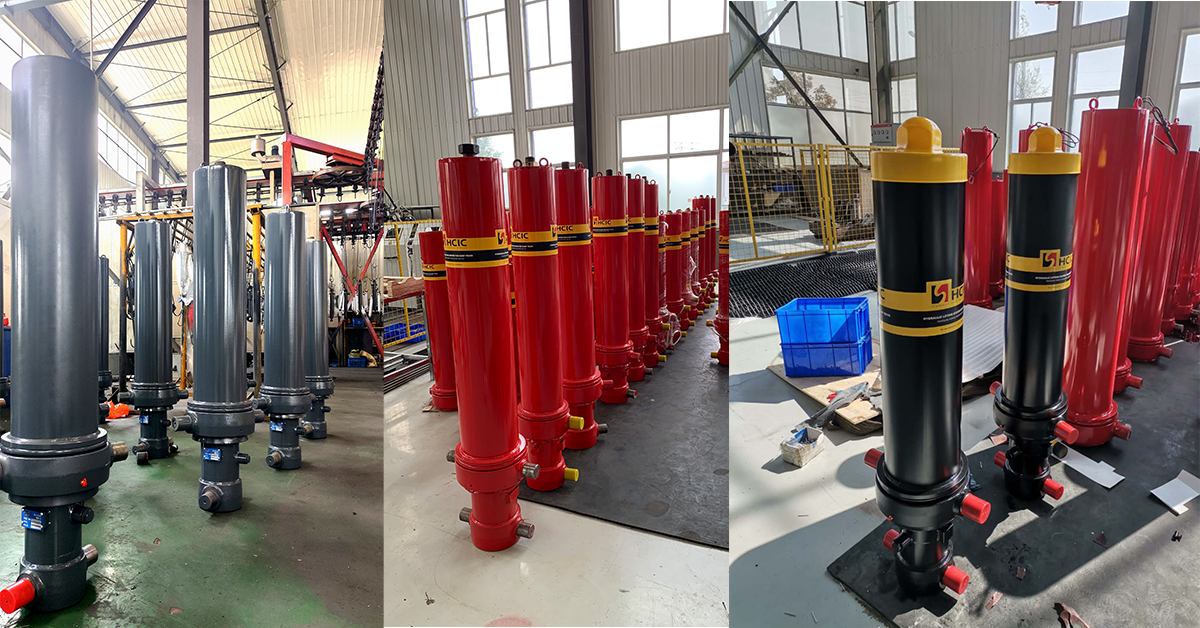

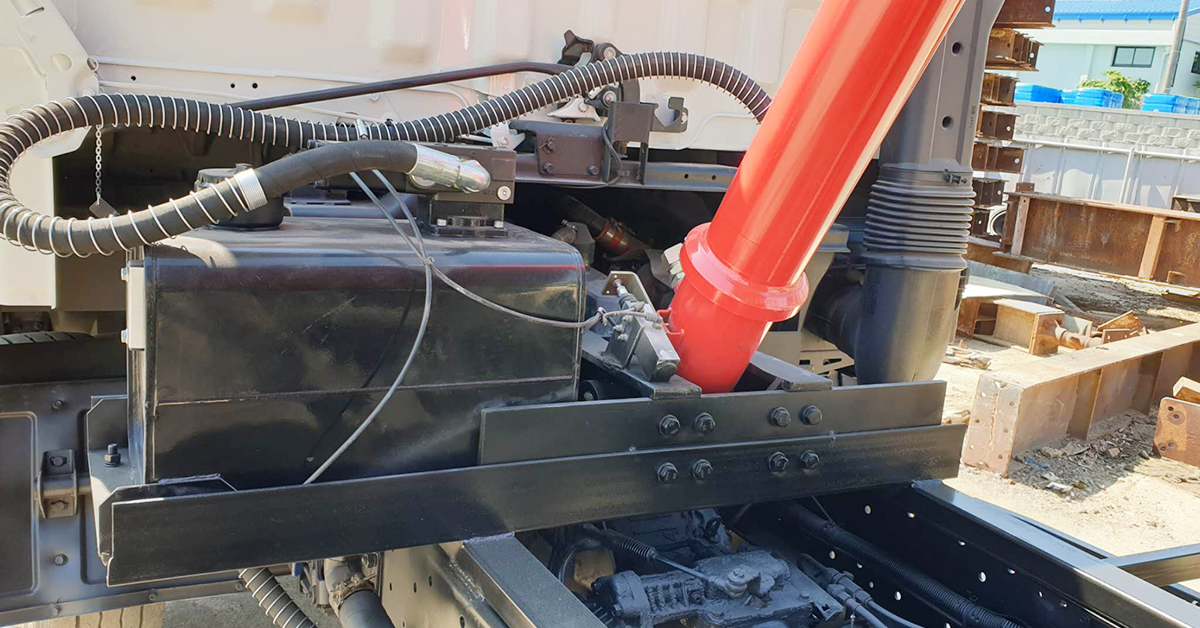

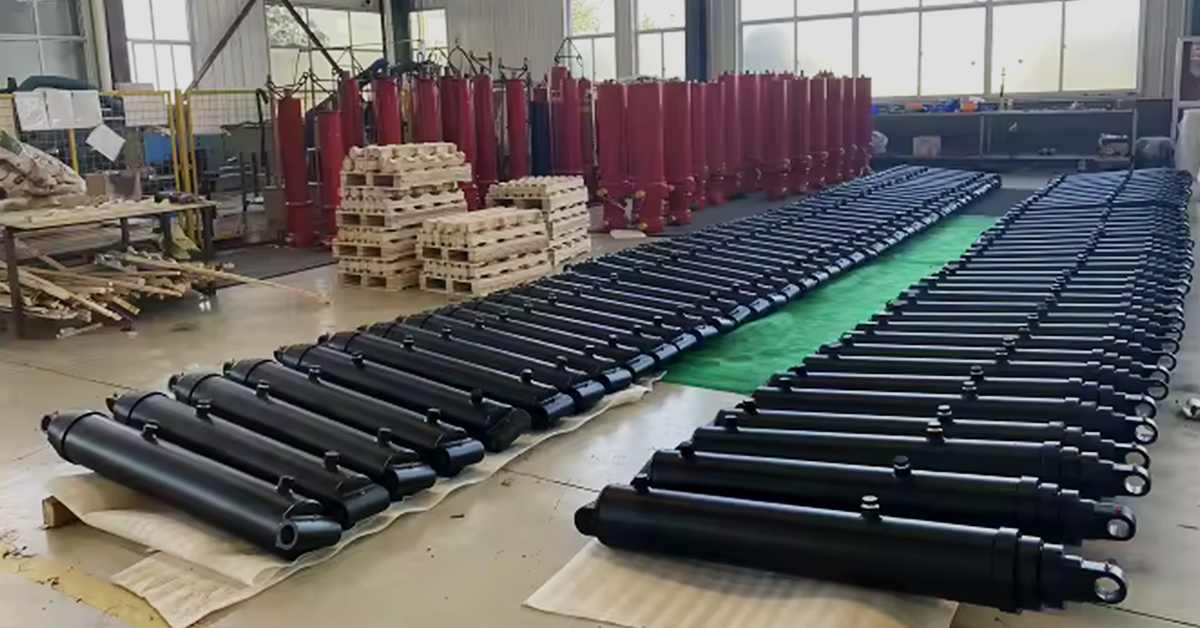

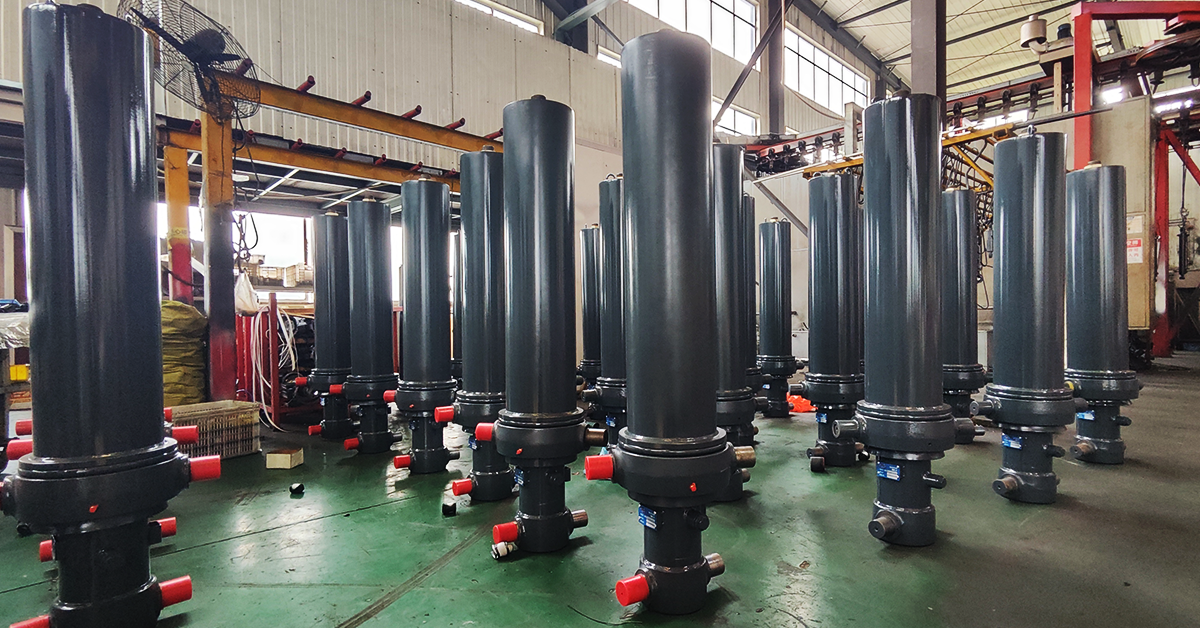

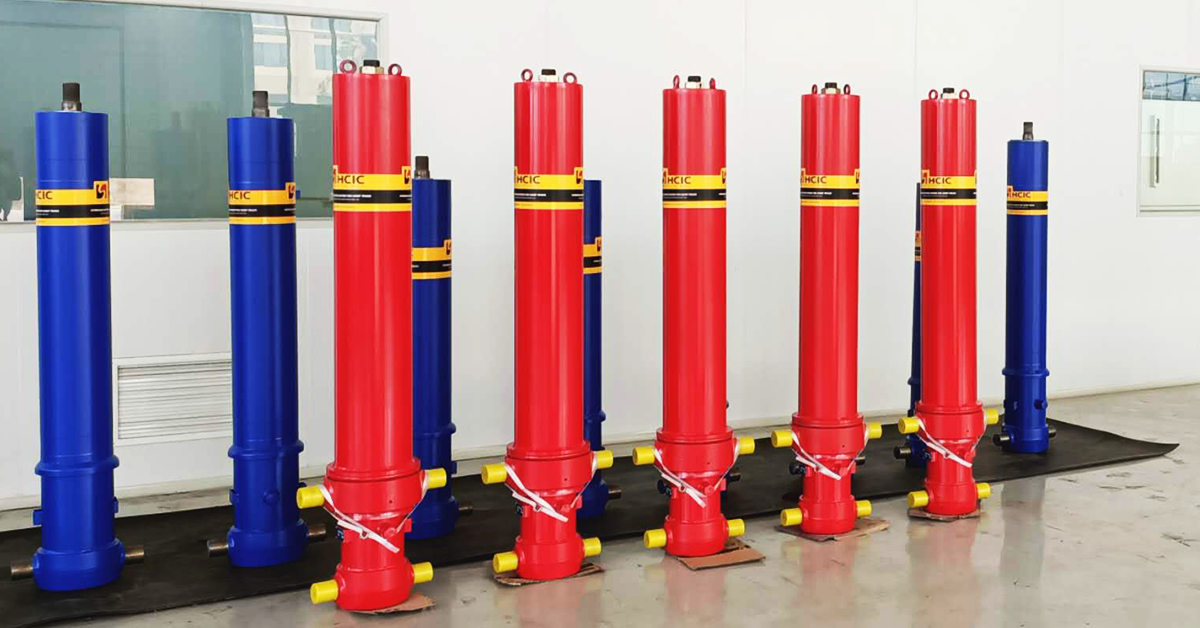

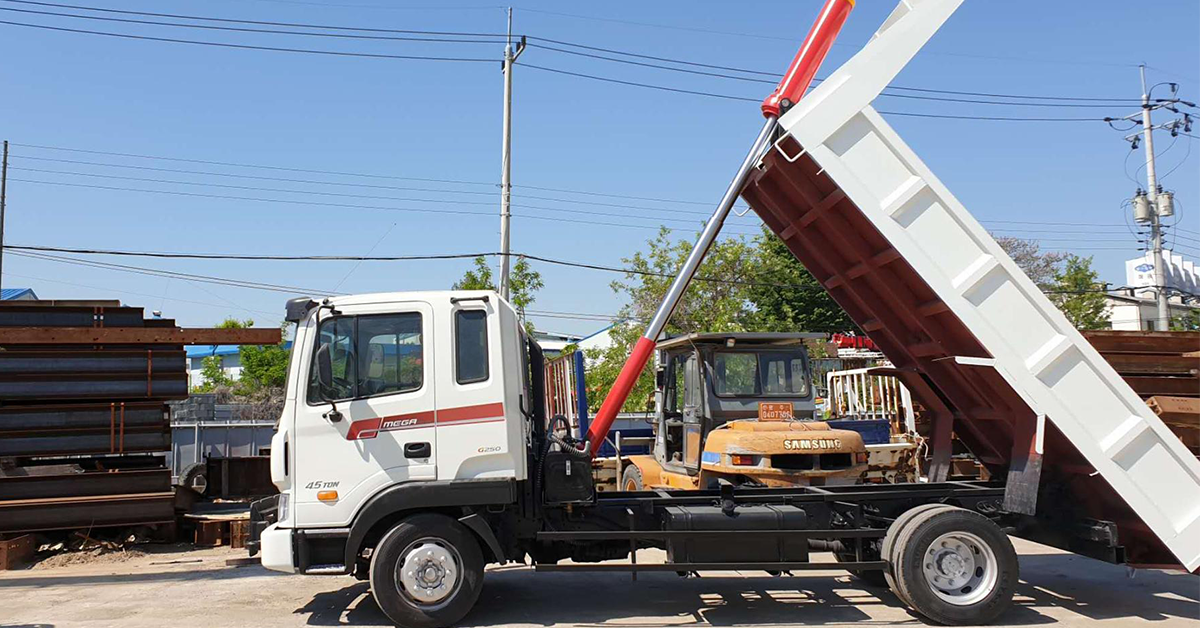

3. Front End Tipping Cylinder Gallery
