JN offers durable and reliable made to order cylinders to your unique projects. With advanced equipments and dedicated engineers, we have provide customized cylinder to over 70 countries.

Purpose Made Hydraulic Cylinder Options

JN has provided products for different industries. Here we listed our market proved hydraulic models for your reference.

JN Hydrualic Cylinder Made to your application

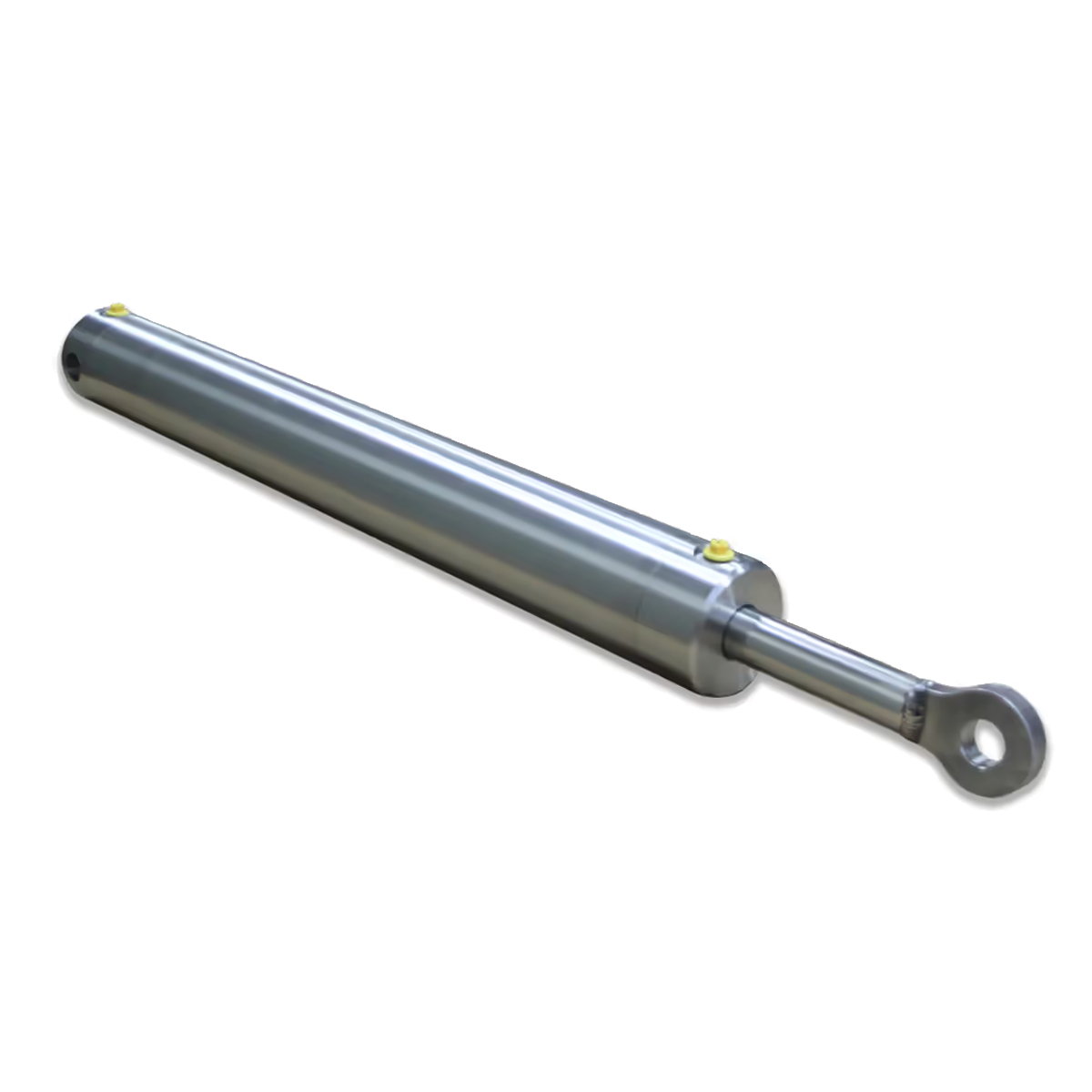

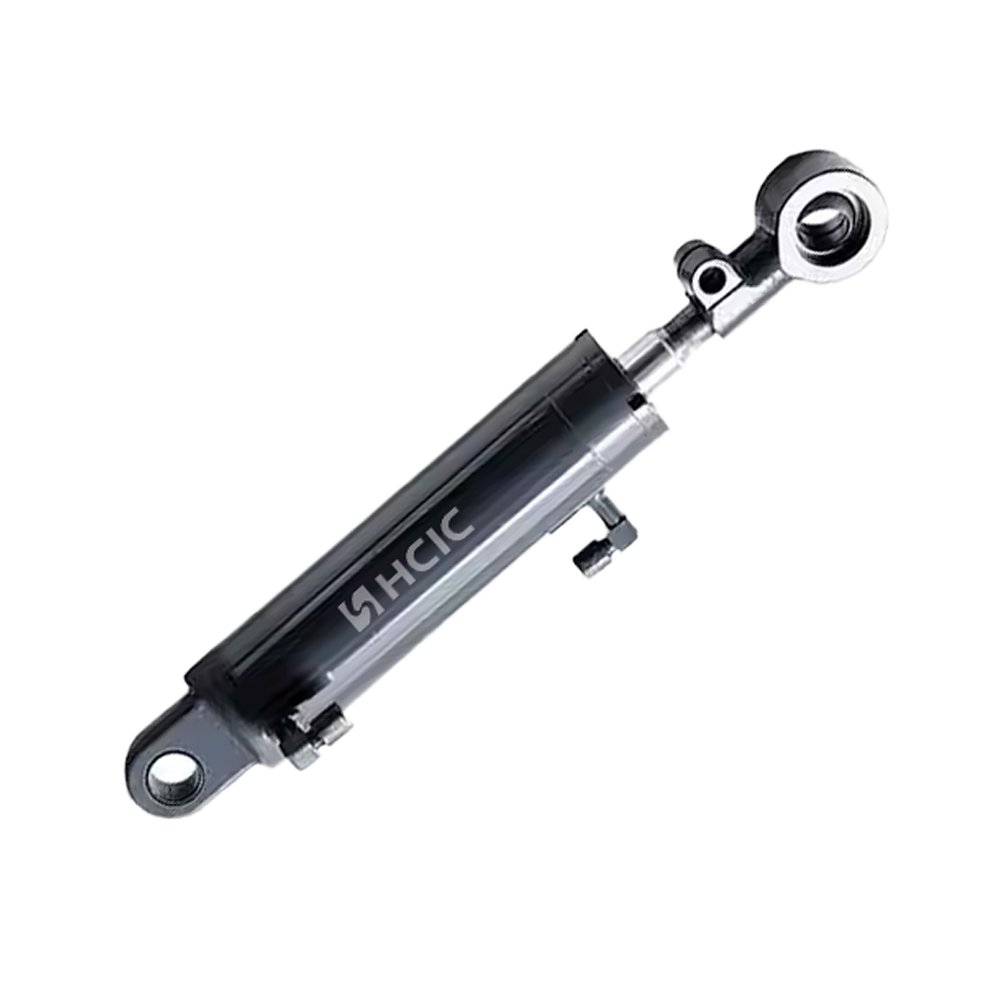

Single-Acting Hydraucli Cylinder

Custom-made single-acting hydraulic cylinders offer low-maintenance solutions compatible with various types of machinery. These cylinders commonly extend by applying pressure to one side of the piston and retract using gravity. Single Acting Cylinder are widely used for food processing, industrial manufacturing, and other markets, single-acting designs provide reliable performance across diverse applications.

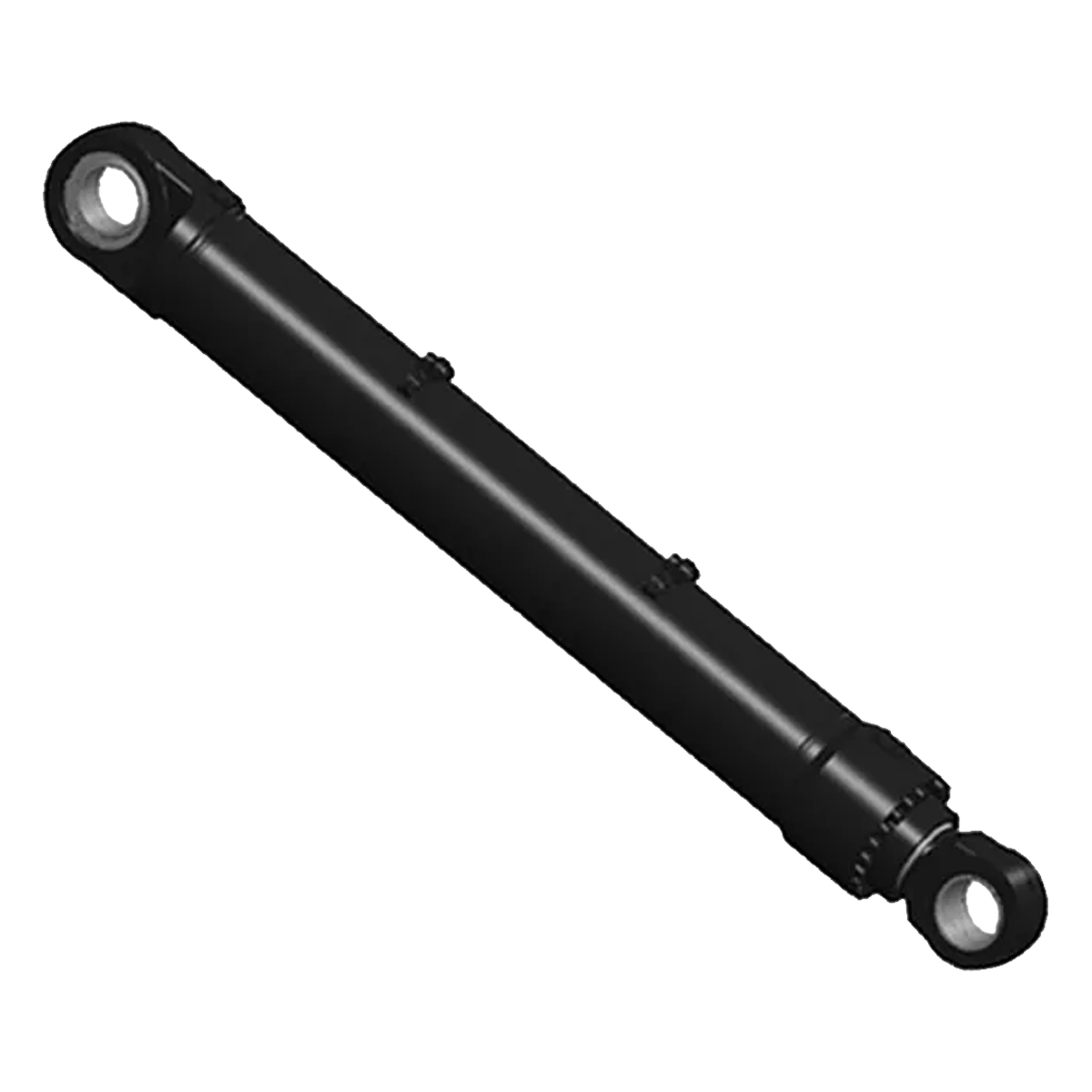

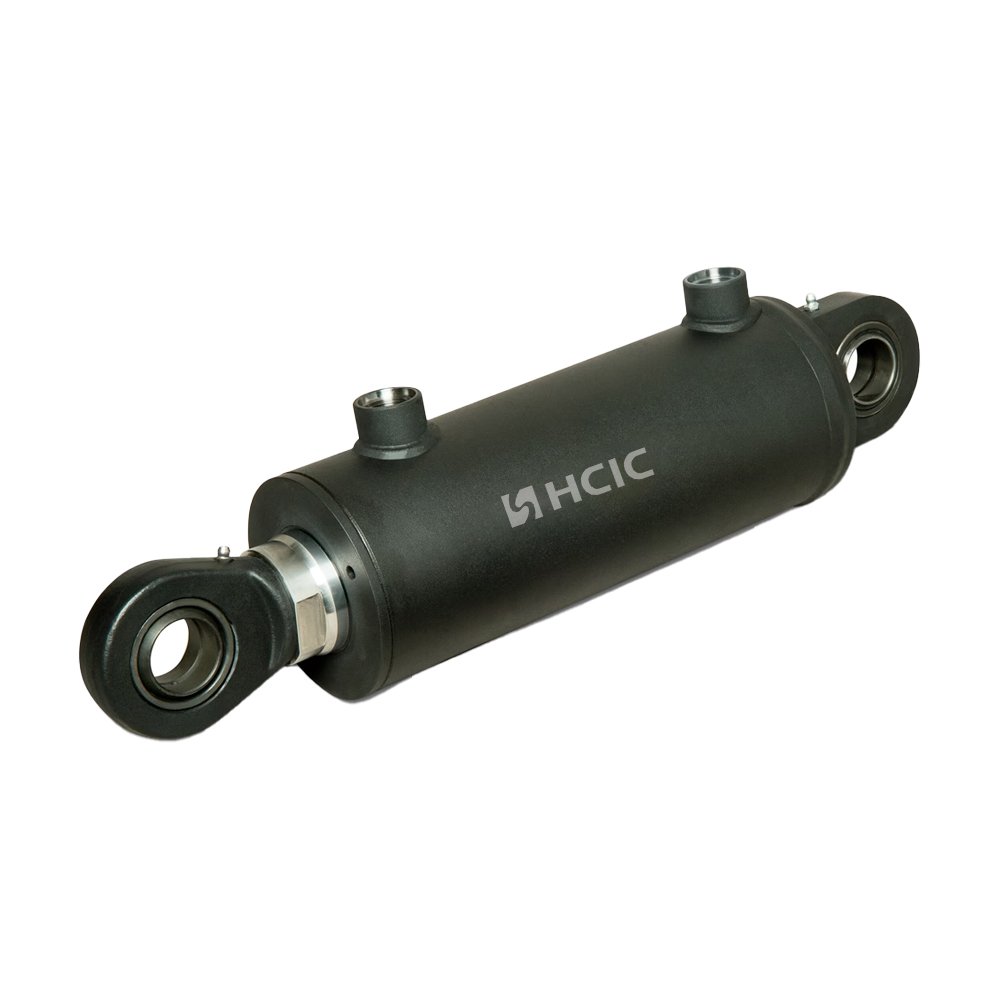

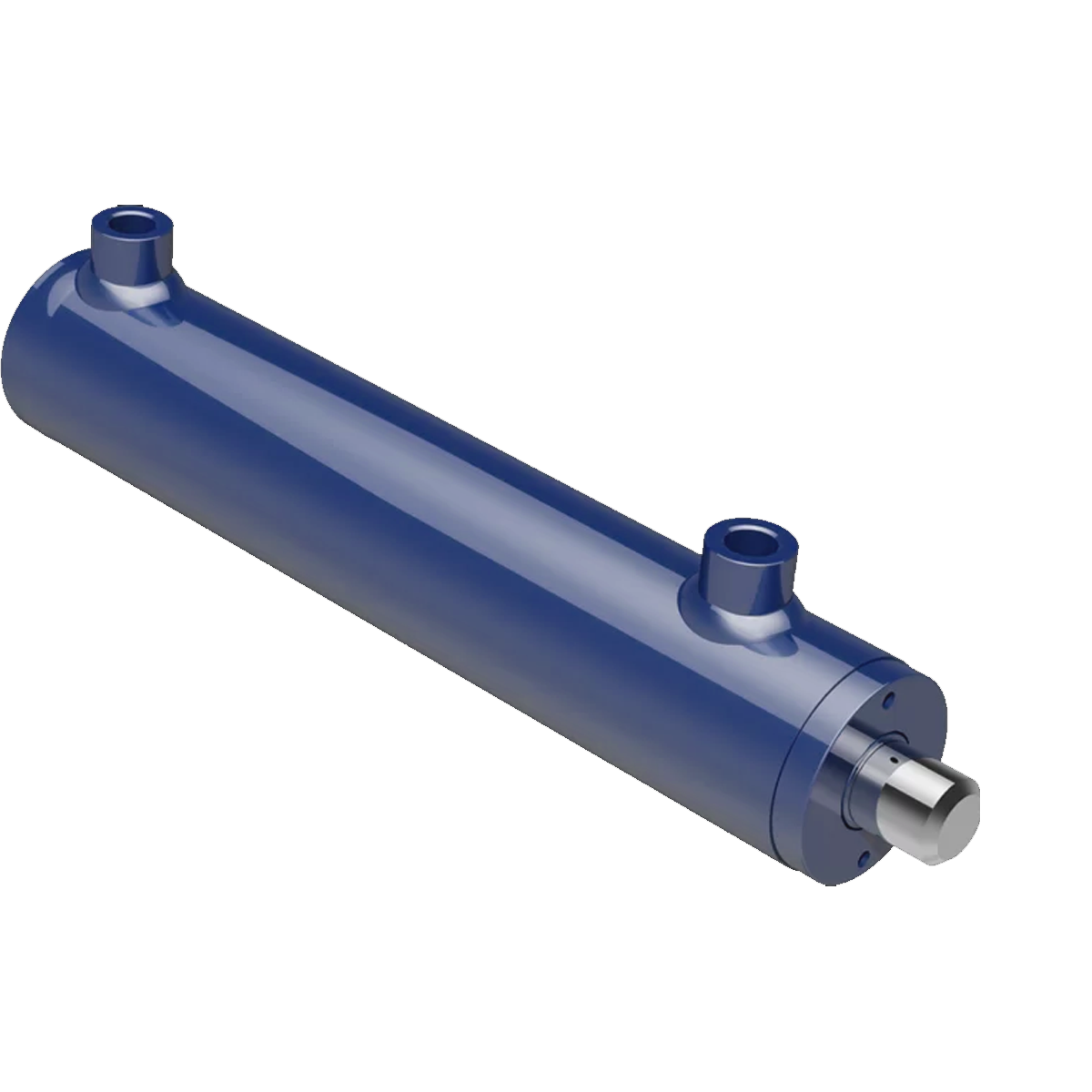

Double-Acting Hydraulic Cylinder

Double-acting hydraulic cylinders are a versatile alternative to single-acting designs, utilizing hydraulic fluid on both sides of the piston for a more controlled retraction process. Custom-made double-acting hydraulic cylinders are perfect for applications requiring force during both extension and retraction, such as in industrial, mobile, or construction equipment.

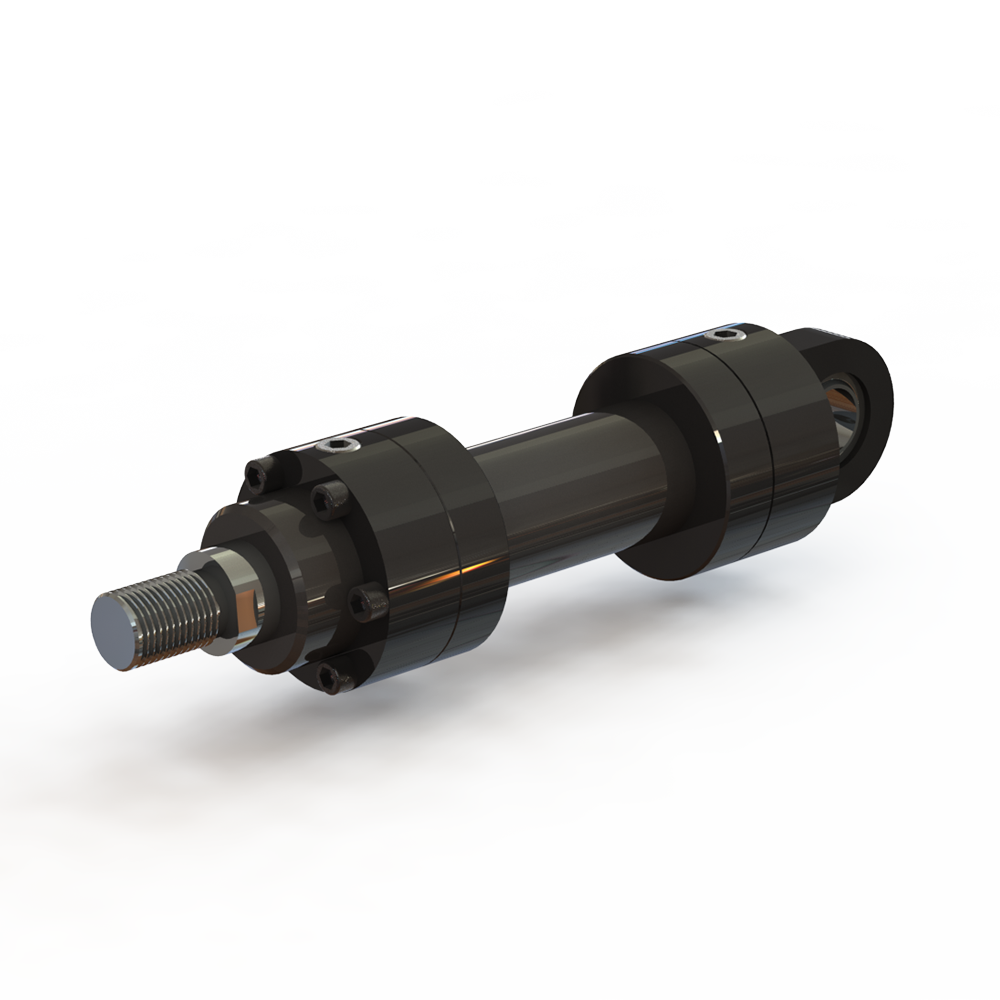

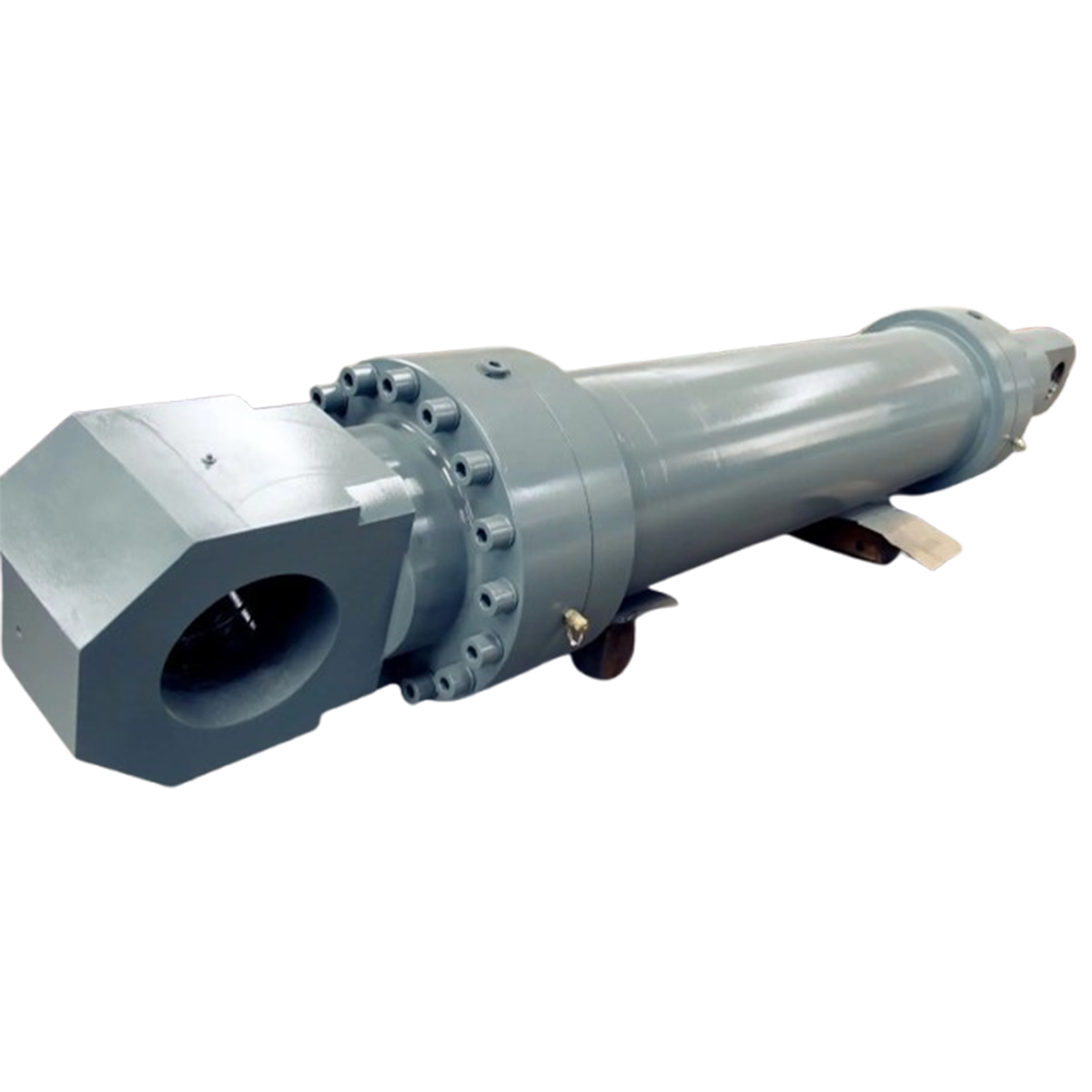

Heavy-Duty Hydraulic Cylinder

Heavy-duty machinery demands robust solutions. Our custom-made heavy-duty hydraulic cylinders, available in single-acting or double-acting designs, are tailored to meet your specifications. With operating pressures rated up to 5,000 psi, these cylinders are engineered to withstand the tough conditions of marine or offshore equipment, forestry applications, mining operations, and more.

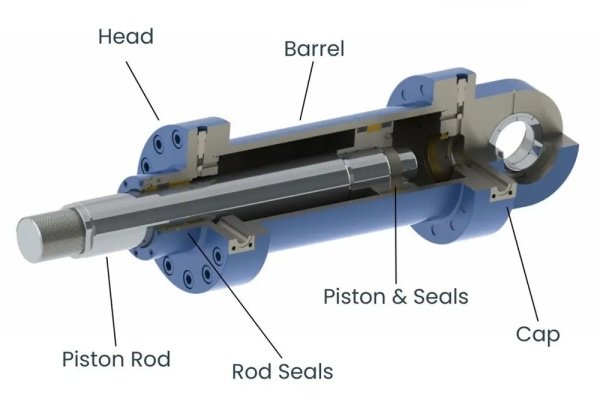

Typical design features of hydrualic cylinder

JN support fully customized cylinder design, that is from materials to sketches to accessories, you can have the ideal product to better your work performance.

Usually, there are three key parameters included in the hydrualic cylinder model number. Using them proporly can help you find the right cylinder quickly.

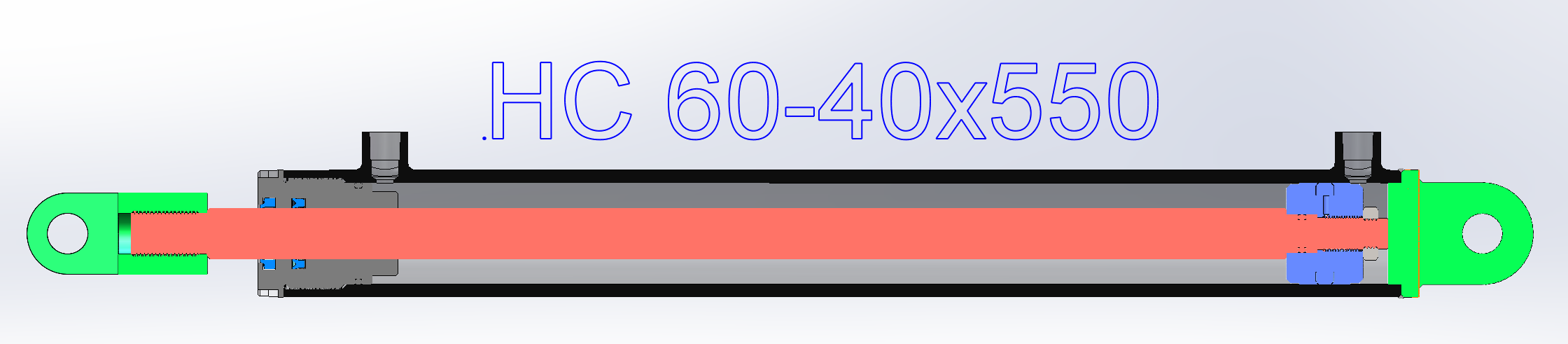

A cylinder named as HC60-40×550 usually means the diameters of bore and rode are 60 and 40 mm, with a stroke length of 550mm. These numbers may varies in different meter system, but those numbers are the most important meters in a stanard welded hydraulic cylinder.

Mounts are typically at the ends of a hydraulic cylinder. They are used for fixing the cylinder on equipments. Mounts are usually welded to the end cap and rod head, impoving durability and strengh. Some are equiped with bushing and bearings in the pin bore to have better motion performance. JN offers multiple mount type for custom hydraulic cylinder, design and product accroding to the actual working condition.

Glands are using for holding seals and limiting the travel of hydraulic cylinder rod. With ductile iron ensuring the strenghness and durability.

Rod

The rod travels and extends from the head of cylinder. Hydraulic fluid pushes rod to move, supplying force to equipment.

Because the rod are always in moving, its quality are vital to the cylinder. JN rod are built with high-strength steal and Chrome-plated to have both toughness and smoothness charactors. We can provide custom chrome-plated thickness to meet your requirements.

Hydraulic cylinder barrels house the piston and piston rods, being sealed at one end by a cap and at the other by a gland. Also referred to as the tube, the barrel endures harsh conditions and rugged demands in any application.

There are many standards for oil ports and choosing right port are important for your custom hydraulic cylinder. Oil ports have effects on the oil speed and pressure. It controls the flow of hydraulic power.

Hydraulic cylinder tubes house the piston and piston rods, being sealed at one end by a cap and at the other by a gland. Also referred to as the tube, the barrel endures harsh conditions and rugged demands in any application.

Reliable Choice for Custom Hydraulic Cylinder

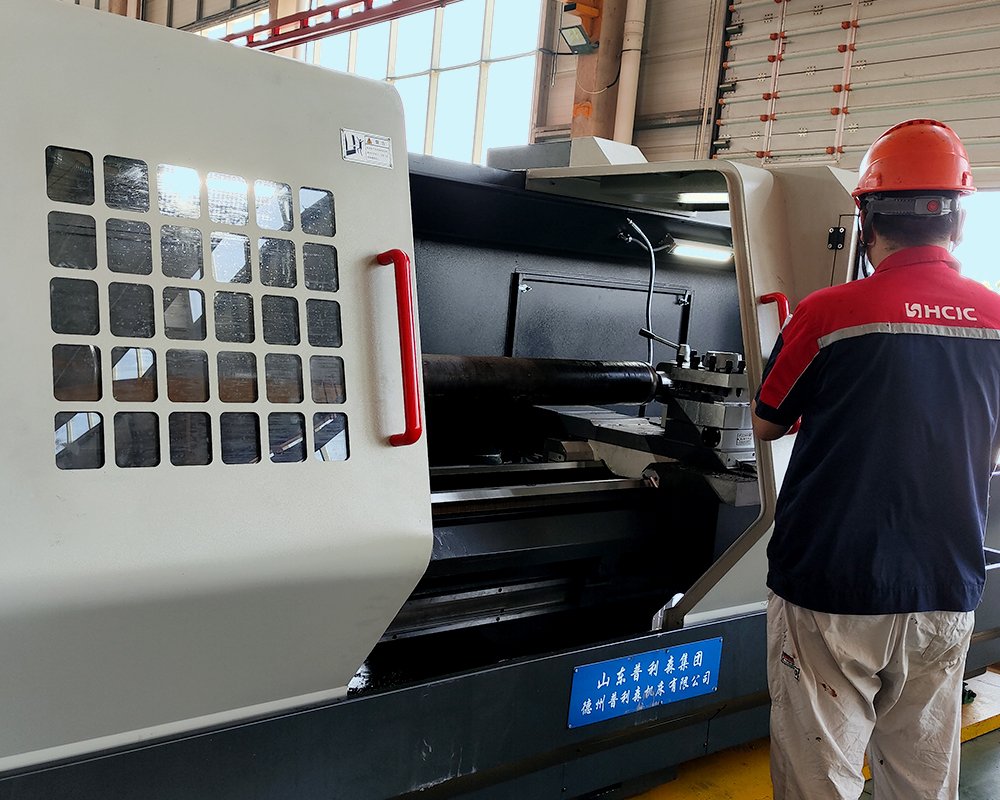

Manufacturing Since 1998

JN begins its step in Hydraulics section in 1998, which is rare in Markets of China. Within resource deleloped by JN, we are able to provide qualitified hydraulic cylinder to meet your requirements.

Growth with Inovation

Problem-solving ability is the key power in our growth. Our engineers combine years of experience and with help of advanced equipments to create inovative products, which helps us winning satisfication from the world.

Experienced Industry Solution

One does not always fits all, especially in hydraulics industry. That’s why we value customer’s requirement as first priority in any product design.
