Telescopic cylinder is special model that can achieve very long stroke with less retracted length. Because of such feature, it is widely built to meet limited space but long travel requirements. JN provide custom telescopic cylinders to suit your industry needs.
Popular types of JN Telescopic Cylinder
Hydraulic Telescopic Cylinder for Dumping Trailers
3 – 5 stage telescopic hydraulic cylinder, 7 – 12 ton capacity.
3 Stage Telescopic hydraulic Cylinder
Commonly seen in US industrial use. Hydraulic Cylinder for Waste Truck.

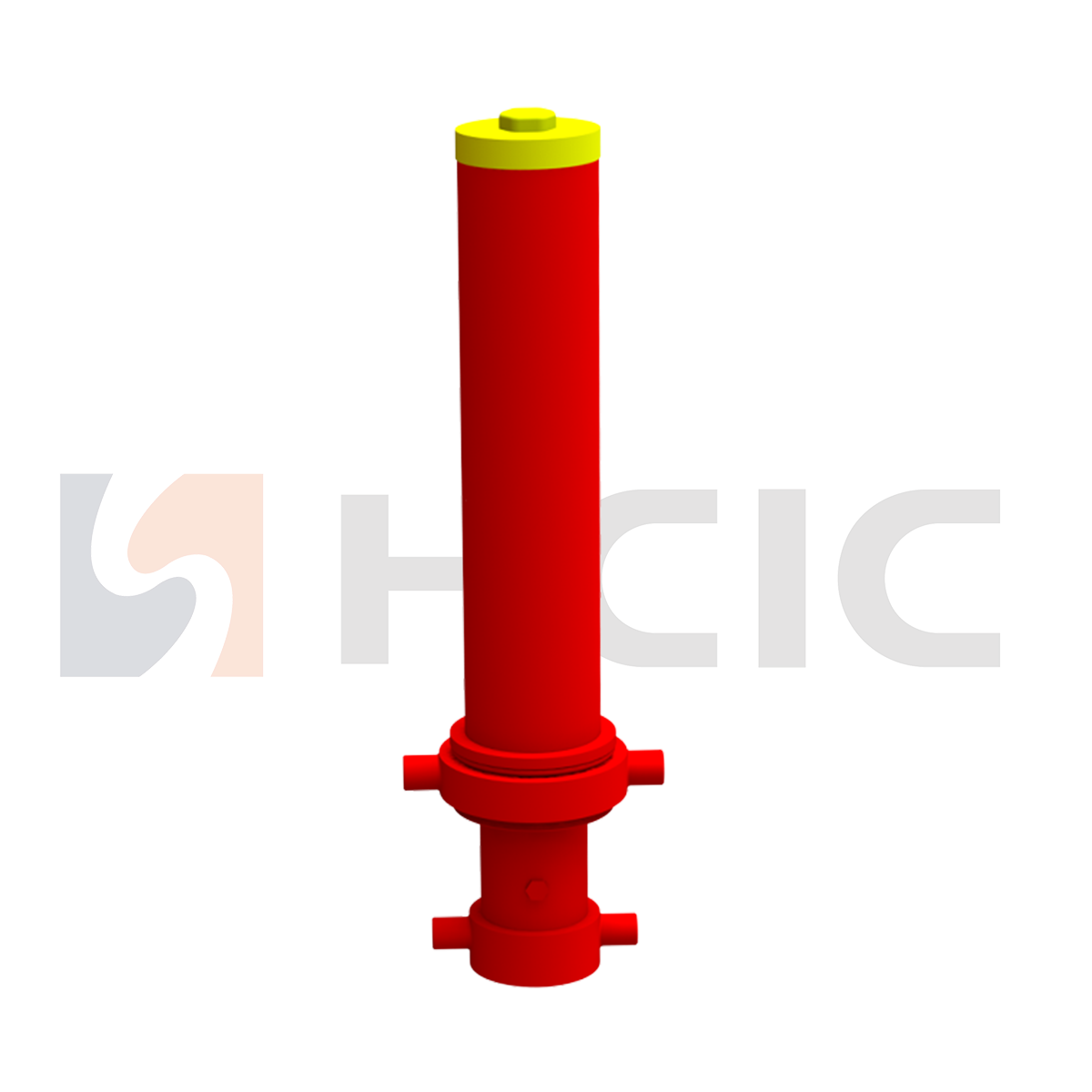

FC Style Tipping Telescopic Cylinder
Front-end cylinder for Tipping Trucks
Multi-stage Hydraulic Cylinder
Commonly seen in US industrial use. Hydraulic Cylinder for Waste Truck.

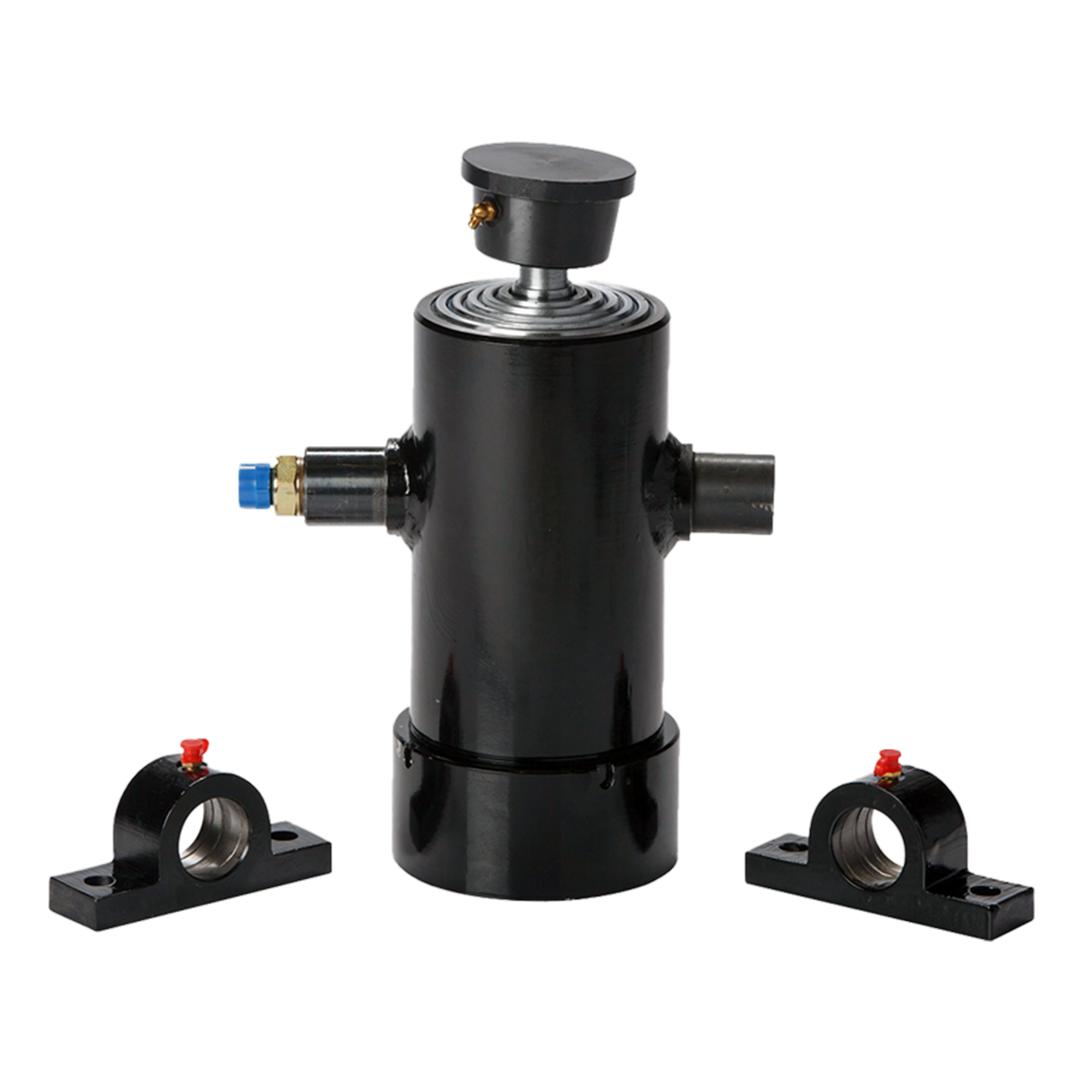

Underbody Telescopic Cylinder
3 – 5 stage telescopic hydraulic cylinder, 7 – 12 ton capacity.

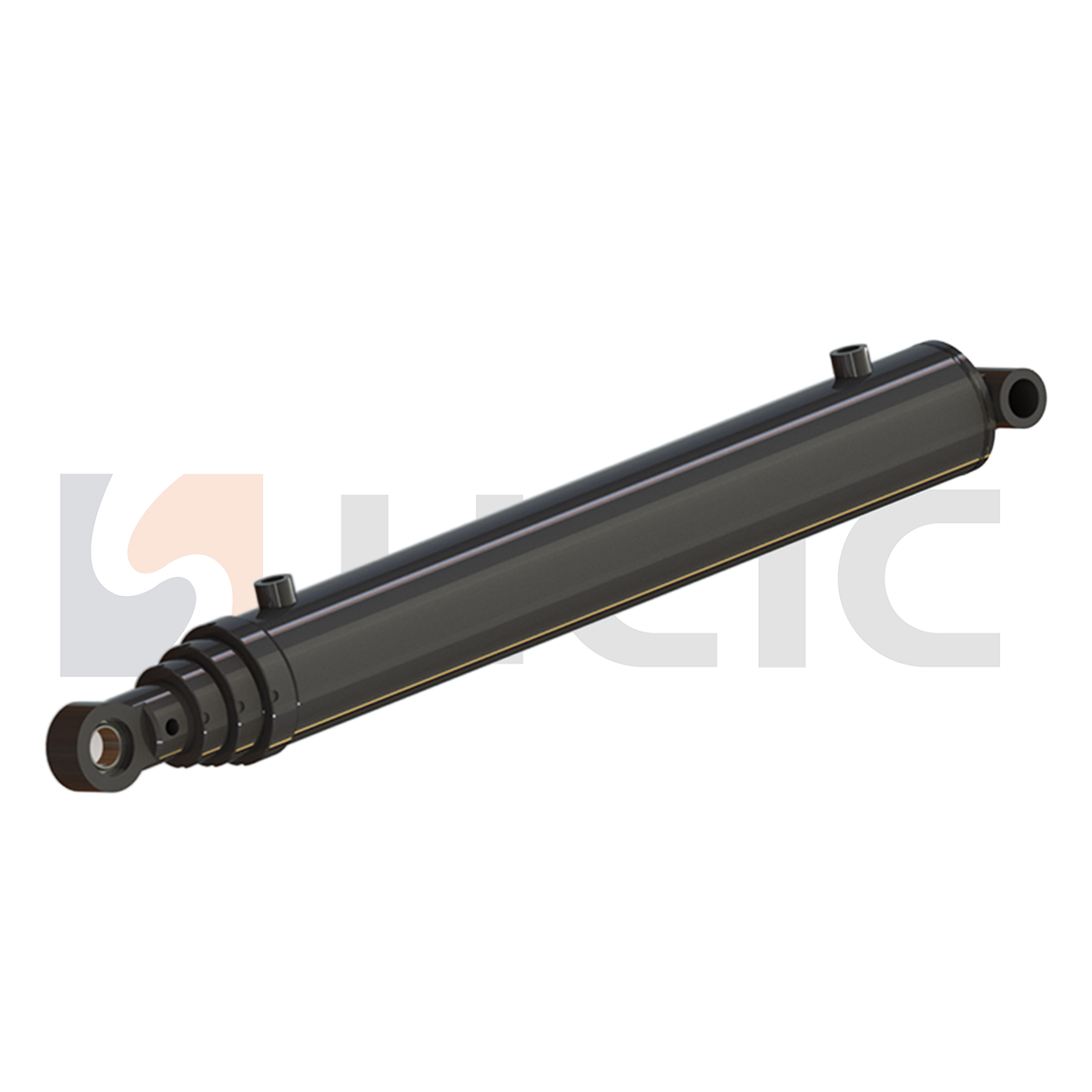

Double Act Hydraulic Telescopic Cylinder
Versitile use in engineering section
Features
- Double Acting option
- Custom Bore Size, Stroke length and lifting capacity
- Custom Mounting Configuration (see below)
- Custom Brand Tags Supported
- Welded/Threaded/Bolted End cap
- Counterbalance, Pilot Operated Check Valves
- Porting options (ORB, NPT, C61) and location
- Custom Paint to your spec
Built to Performant
Telescopic Cylinder is the key component in Mobile hydraulic usage. JN has rich experience in manufacturing and supplying hydraulic telescopic cylinders for tipping truck and dump trailers. We know a performant cylinder can outstand your equipment far futher.
Common Mounting Options
Trunion
Lug
Lug with Bearing
