How is FEE positioned against FE?

FEE covers a lower lifting range — from 15.5 t to 51.3 t against 28.3 t to 64 t for FE — with 3 to 5 stages instead of 3 to 6. It suits lighter bodies where the FE base bore would be oversized.

What port types are supplied?

SAE16 and NPT1 appear across the range. Tell us the hose end you already use and the cylinder will be supplied with the matching port rather than an adapter.

What is the smallest and largest model?

15.5 t at the bottom of the range and 51.3 t at the top, both at 16 MPa. The full model list with diameters at each stage is in the table above.

Are the diameter-at-levels figures per stage?

Yes. A 5-stage model listed as 200/175/152/130/110 means the base stage is 200 mm and each successive stage steps down to 110 mm at the top.

Tipping & Dump

FEE Telescopic Front-End Cylinder

FEE front-end telescopic cylinder, 9 models with lifting weight from 15.5 t to 51.3 t at 16 MPa, 3 to 5 stages, and closed lengths from 1,304 mm to 1,819 mm.

Models: FEE series, 9 models

lifting weight: 15.5 – 51.3 t
working pressure: 16 MPa (160 bar)
models listed: 9
stages: 3 to 5
closed length: 1,304 – 1,819 mm
port options: SAE16 / NPT1

Request a quote Dimension drawings

Full specifications by model

Every row below is one orderable model. Link straight to a model with its anchor — for example #fee-5tg-e191-4826.

Model	Lifting Weight (ton)	Pressure (MPa)	Diameter at Levels	A (mm)	C (mm)	N (mm)	Y (mm)	Z (mm)	M (mm)	P	L (mm)
FEE-5TG-E191*4826	51.3	16	200/175/152/130/110	245	231	52.3	52.3	42	60	SAE16	1357
FEE-5TG-E191*5588	51.3	16	200/175/152/130/110	245	231	52.3	52.3	42	60	SAE16	1524
FEE-5TG-E191*5969	51.3	16	200/175/152/130/110	245	231	52.3	52.3	42	60	SAE16	1585
FEE-5TG-E191*6477	51.3	16	200/175/152/130/110	245	231	52.3	52.3	42	60	SAE16	1700
FEE-5TG-E191*6883	51.3	16	200/175/152/130/110	245	231	52.3	52.3	42	60	SAE16	1760
FEE-5TG-E191*7137	51.3	16	200/175/152/130/110	245	231	52.3	52.3	42	60	SAE16	1819
FEE-5TG-E191*5780	51.3	16	200/175/152/130/110	245	231	50	50	42	70	NPT1	1550
FEE-3TG-E110*2755	15.5	16	110/90/70	168	132	51	50	42	70	NPT1	1304
FEE-3TG-E149*3680	29.6	16	152/110/90/70	219	178	50	50	42	70	NPT1	1304

Dimensions are in millimetres and are taken from the current drawing for each model. Before ordering, ask us for the drawing of the exact model so the mounting dimensions are checked against your frame — the table is for selection, the drawing is what we build to.

Dimensional drawings

Each series has its own drawing with the mounting interfaces, cylinder support and cradle options. Open a drawing full size to read the tolerances and thread options.

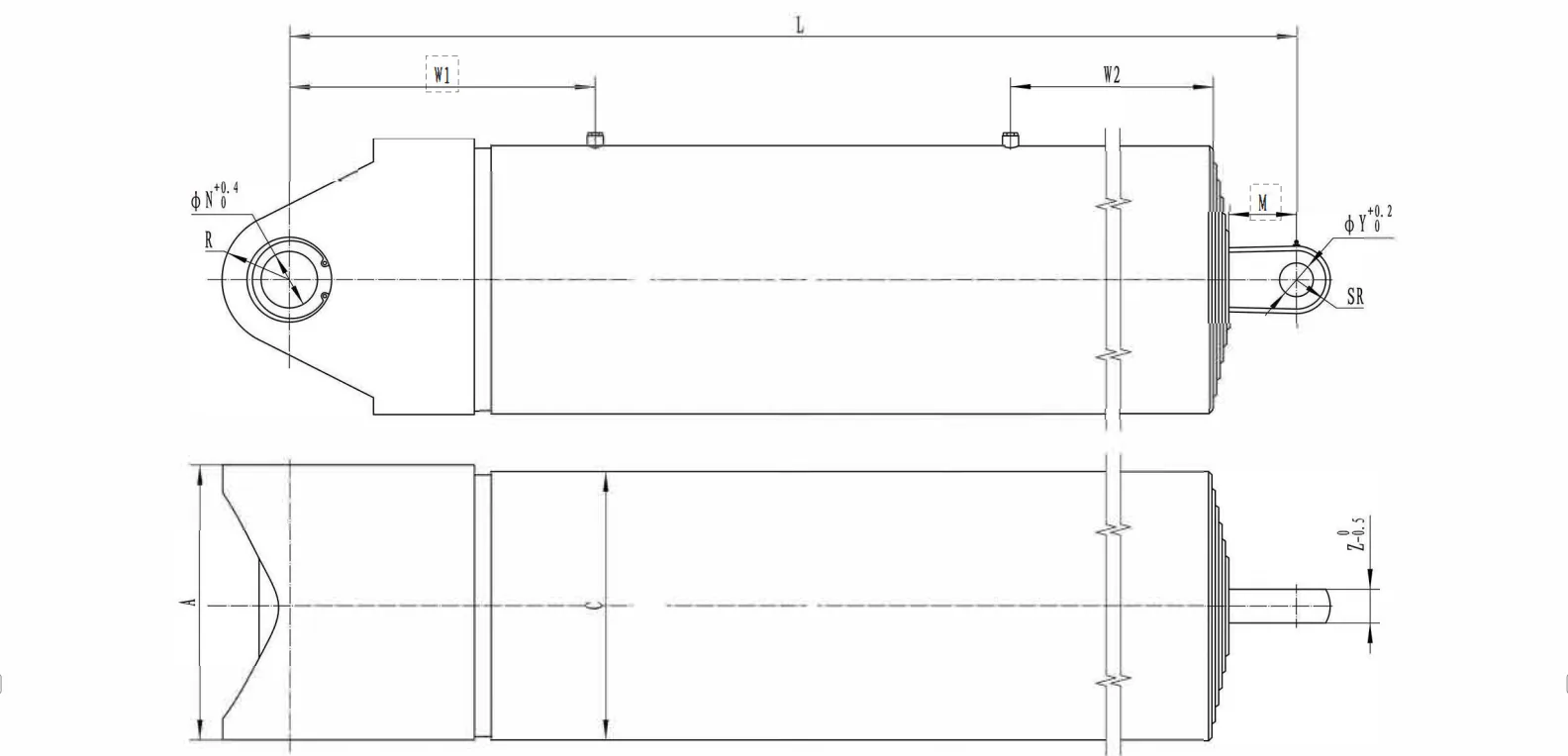

FEE telescopic cylinder outline drawing showing closed length and mounting interface

Where this cylinder is used

Selection is driven by the duty cycle, not the catalogue. Tell us the load, the stroke you need and how many cycles per day — those three numbers decide the series and often the port configuration.

dump-trucks
tipper-bodies

Questions buyers ask before ordering

How is FEE positioned against FE?: FEE covers a lower lifting range — from 15.5 t to 51.3 t against 28.3 t to 64 t for FE — with 3 to 5 stages instead of 3 to 6. It suits lighter bodies where the FE base bore would be oversized.
What port types are supplied?: SAE16 and NPT1 appear across the range. Tell us the hose end you already use and the cylinder will be supplied with the matching port rather than an adapter.
What is the smallest and largest model?: 15.5 t at the bottom of the range and 51.3 t at the top, both at 16 MPa. The full model list with diameters at each stage is in the table above.
Are the diameter-at-levels figures per stage?: Yes. A 5-stage model listed as 200/175/152/130/110 means the base stage is 200 mm and each successive stage steps down to 110 mm at the top.

Need this sized for your equipment?

Send the load, stroke and mounting envelope. We will come back with the model that fits and the drawing for it.

Ask an engineer
