FE Telescopic Front-End Cylinder
Front-end telescopic cylinder for straight-headboard dump trucks, 13 models at 28.3, 49 or 64 t tipping capacity and 16 MPa working pressure, with closed lengths from 1,240 mm to 1,732 mm.
Models: FE series, 13 models
- tipping capacity
- 28.3 / 49 / 64 t
- working pressure
- 16 MPa (160 bar)
- models listed
- 13
- stages
- 3 to 6
- bore diameter
- 158 / 136 / 115 mm (3-stage)
- closed length
- 1,240 – 1,732 mm
Full specifications by model
Every row below is one orderable model. Link straight to a model with its anchor — for example #fe-3tg-e149-3880.
| Model | Tipping capacity (t) | Pressure (MPa) | Bore Diameter (mm) | A (mm) | B (mm) | C (mm) | D (mm) | δ (mm) | L(mm) Closed length |
|---|---|---|---|---|---|---|---|---|---|
| FE‑3TG‑E149*3880 | 28.3 | 16 | 158/136/115 | 201 | 331 | 135 | 50 | 42 | 1697 |
| FE‑3TG‑E149*4090 | 28.3 | 16 | 158/136/115 | 201 | 331 | 135 | 50 | 42 | 1732 |
| FE‑4TG‑E149*4280 | 28.3 | 16 | 158/136/115/95 | 245 | 385 | 70 | 50 | 50 | 1345 |
| FE‑4TG‑E149*4650 | 28.3 | 16 | 158/136/115/95 | 201 | 331 | 100 | 50 | 42 | 1546 |
| FE‑4TG‑E149*4940 | 28.3 | 16 | 158/136/115/95 | 201 | 331 | 100 | 50 | 42 | 1499 |
| FE‑4TG‑E169*4280 | 49 | 16 | 169/158/136/115 | 245 | 385 | 70 | 50 | 50 | 1345 |
| FE‑4TG‑E169*4620 | 49 | 16 | 169/158/136/115 | 245 | 385 | 70 | 50 | 50 | 1479 |
| FE‑4TG‑E169*5180 | 49 | 16 | 169/158/136/115 | 245 | 385 | 70 | 50 | 50 | 1604 |
| FE‑5TG‑E169*5780 | 49 | 16 | 169/158/136/115/95 | 245 | 385 | 70 | 50 | 50 | 1559 |
| FE‑5TG‑E169*6180 | 49 | 16 | 169/158/136/115/95 | 245 | 385 | 70 | 50 | 50 | 1505 |
| FE‑6TG‑E169*6060 | 49 | 16 | 169/158/136/115/95/70 | 245 | 385 | 70 | 50 | 50 | 1240 |
| FE‑5TG‑E191*6180 | 64 | 16 | 191/169/158/136/115 | 270 | 400 | 100 | 50 | 42 | 1497 |
| FE‑5TG‑E191*6350 | 64 | 16 | 191/169/158/136/115 | 270 | 400 | 100 | 50 | 42 | 1673 |
Dimensions are in millimetres and are taken from the current drawing for each model. Before ordering, ask us for the drawing of the exact model so the mounting dimensions are checked against your frame — the table is for selection, the drawing is what we build to.

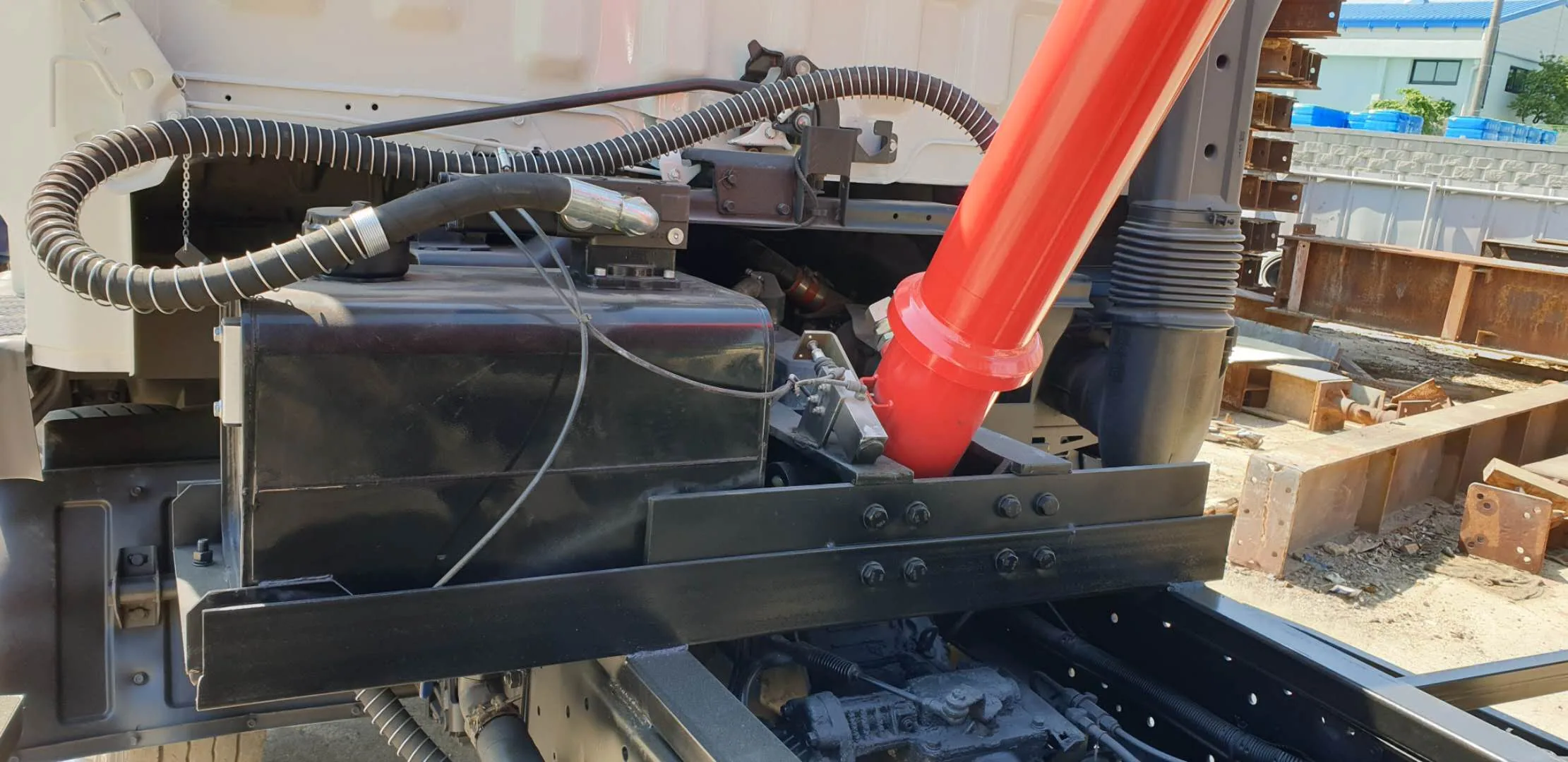

Where this cylinder is used
Selection is driven by the duty cycle, not the catalogue. Tell us the load, the stroke you need and how many cycles per day — those three numbers decide the series and often the port configuration.
- dump-trucks
- straight-headboard-tippers
Questions buyers ask before ordering
- How is the FE series different from FC?
- FE is specified for straight headboard bodies and comes in three capacity groups (28.3, 49 and 64 t) with 3 to 6 stages. The bore progression differs from FC, which is why the closed lengths and mounting dimensions are not interchangeable between the two series.
- What bore sizes are used across the series?
- The 3-stage models use 158/136/115 mm; 4- and 5-stage models add 169 mm; the 6-stage models go up to 191 mm at the base stage. Larger base bore is what carries the higher capacity groups.
- Which model gives 64 t?
- The two 5-stage E191 models: FE-5TG-E191*6180 with a 1,497 mm closed length and FE-5TG-E191*6350 at 1,673 mm. Both run at 16 MPa.
- Can a 6-stage model replace a 5-stage one?
- Only if the closed length and mounting dimensions match your body. A 6-stage unit gives more stroke from a shorter retracted length, but the base bore is different, so the frame mounts are not the same.
Need this sized for your equipment?
Send the load, stroke and mounting envelope. We will come back with the model that fits and the drawing for it.
