What is the largest tipping capacity in the FC series?

64 t, on the F191 bore groups at 20 MPa. The smallest is 28.3 t on the E149 4-stage group at 16 MPa, so the series spans roughly a 2.3× range of lifting force within the same mounting family.

Why is closed length quoted alongside stroke?

On a front-end installation the cylinder sits behind the cab, so the space between the chassis crossmember and the body front board is fixed. A longer stroke usually means a longer closed length, and that is what decides whether the cylinder physically fits.

What is the difference between 16 MPa and 20 MPa models?

The pressure rating is tied to the bore group and stage count. Higher pressure in the same bore gives more force, which is how the 64 t models stay within a mounting envelope sized for a smaller cylinder.

Can you supply the drawing for one specific model?

Yes — ask for the drawing of the exact model you are considering. The table is for selection; the drawing carries the mounting dimensions and tolerances we build to.

Tipping & Dump

FC Telescopic Front-End Cylinder

Front-end telescopic cylinder for dump trucks, 27 models from 28.3 t to 64 t tipping capacity at 16–20 MPa, with closed lengths from 1,195 mm to 1,945 mm.

Models: FC series, 27 models

tipping capacity: 28.3 – 64 t
working pressure: 16 – 20 MPa
models listed: 27
stages: 4 to 6
closed length: 1,195 – 1,945 mm
mounting: front-end, pin to pin

Request a quote

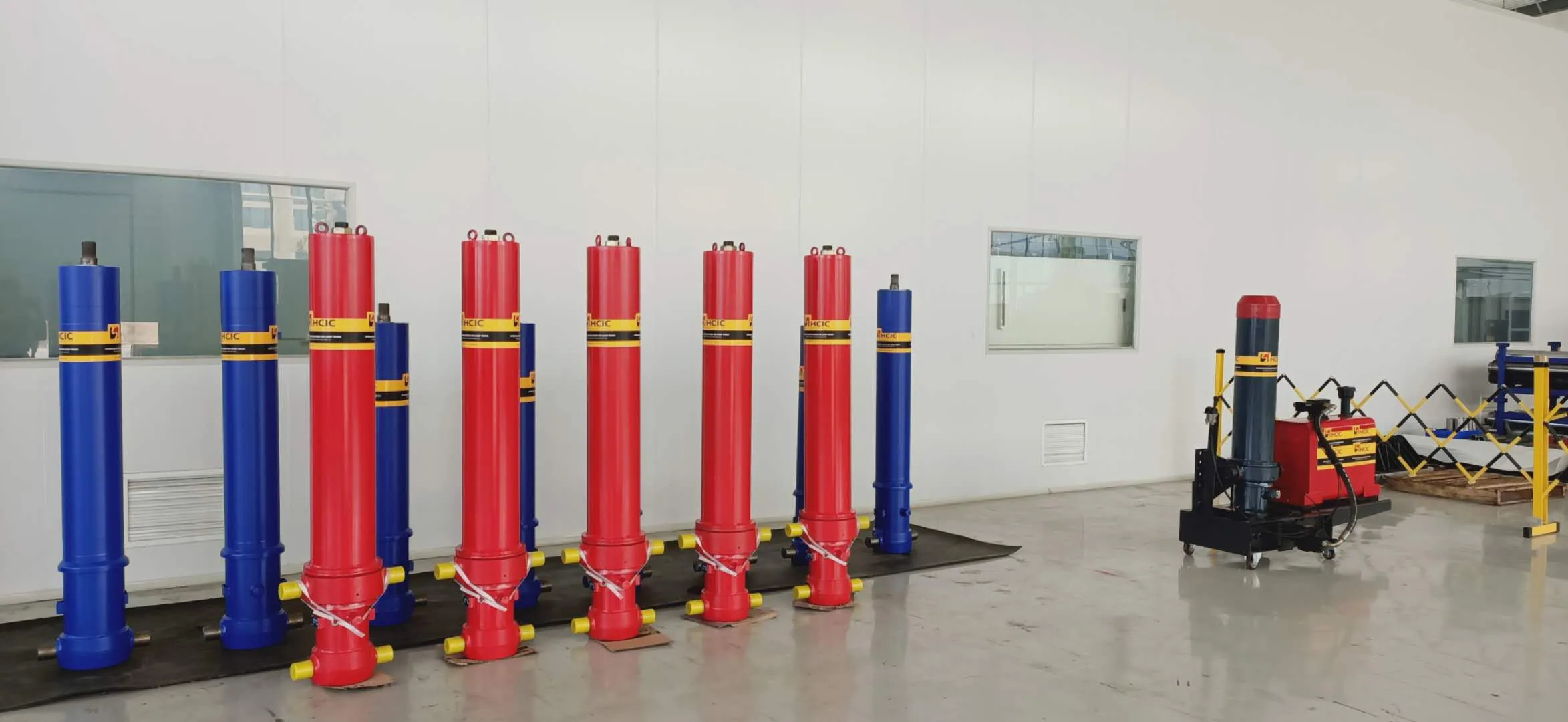

Row of red and blue telescopic front-end cylinders on the factory floor before assembly

Full specifications by model

Every row below is one orderable model. Link straight to a model with its anchor — for example #4tg-e149-4280hcic.

Model	Tipping capacity (t)	Pressure (MPa)	A (mm)	B (mm)	C (mm)	D (mm)	E(mm) Closed length	F (mm)	L (mm)	G (mm)	H (mm)
4TG-E149*4280HCIC	28.3	16	245	385	360	490	325	272	1450	195±10	410±10
5TG-E149*4280HCIC	28.3	16	245	385	360	490	325	272	1195	195±10	410±10
4TG-F169*4280HCIC	49	20	245	385	360	490	325	272	1460	195±10	410±10
4TG-F169*4650HCIC	49	20	245	385	360	490	325	272	1555	195±10	410±10
4TG-F169*5000HCIC	49	20	245	385	360	490	325	272	1645	195±10	410±10
4TG-F169*5390HCIC	49	20	245	385	360	490	325	272	1740	195±10	410±10
4TG-F169*5700HCIC	49	20	245	385	360	490	325	272	1820	195±10	410±10
5TG-F169*4280HCIC	49	20	245	385	360	490	325	272	1195	195±10	410±10
5TG-F169*5000HCIC	49	20	245	385	360	490	325	272	1355	195±10	410±10
5TG-F169*5390HCIC	49	20	245	385	360	490	325	272	1455	195±10	410±10
5TG-F169*5700HCIC	49	20	245	385	360	490	325	272	1500	195±10	410±10
4TG-F172*4650HCIC	54.8	20	245	385	360	490	325	272	1560	195±10	410±10
4TG-F172*5000HCIC	54.8	20	245	385	360	490	325	272	1645	195±10	410±10
4TG-F172*5390HCIC	54.8	20	245	385	360	490	325	272	1740	195±10	410±10
4TG-F172*5700HCIC	54.8	20	245	385	360	490	325	272	1820	195±10	410±10
4TG-F172*6000HCIC	54.8	20	245	385	360	490	325	272	1890	195±10	410±10
4TG-F172*6180HCIC	54.8	20	245	385	360	490	325	272	1935	195±10	410±10
5TG-F172*4280HCIC	54.8	20	245	385	360	490	325	272	1195	195±10	410±10
5TG-F172*5000HCIC	54.8	20	245	385	360	490	325	272	1355	195±10	410±10
4TG-F191*6000HCIC	64	20	270	410	360	490	325	272	1900	220±10	410±10
5TG-F191*6500HCIC	64	20	270	410	360	490	325	272	1630	220±10	410±10
4TG-F169*4280HV	49	20	245	385	340	470	325	244	1460	195±10	410±10
4TG-F169*4650HV	49	20	245	385	340	470	325	244	1555	195±10	410±10
4TG-F169*5390HV	49	20	245	385	340	470	325	244	1740	195±10	410±10
4TG-F191*5700HV	64	20	270	410	360	490	325	272	1825	220±10	410±10
4TG-F191*6000HV	64	20	270	410	360	490	325	272	1900	220±10	410±10
4TG-F191*6180HV	64	20	270	410	360	490	325	272	1945	220±10	410±10

Dimensions are in millimetres and are taken from the current drawing for each model. Before ordering, ask us for the drawing of the exact model so the mounting dimensions are checked against your frame — the table is for selection, the drawing is what we build to.

Where this cylinder is used

Selection is driven by the duty cycle, not the catalogue. Tell us the load, the stroke you need and how many cycles per day — those three numbers decide the series and often the port configuration.

dump-trucks
tipper-bodies
mining-haulage

Questions buyers ask before ordering

What is the largest tipping capacity in the FC series?: 64 t, on the F191 bore groups at 20 MPa. The smallest is 28.3 t on the E149 4-stage group at 16 MPa, so the series spans roughly a 2.3× range of lifting force within the same mounting family.
Why is closed length quoted alongside stroke?: On a front-end installation the cylinder sits behind the cab, so the space between the chassis crossmember and the body front board is fixed. A longer stroke usually means a longer closed length, and that is what decides whether the cylinder physically fits.
What is the difference between 16 MPa and 20 MPa models?: The pressure rating is tied to the bore group and stage count. Higher pressure in the same bore gives more force, which is how the 64 t models stay within a mounting envelope sized for a smaller cylinder.
Can you supply the drawing for one specific model?: Yes — ask for the drawing of the exact model you are considering. The table is for selection; the drawing carries the mounting dimensions and tolerances we build to.

Need this sized for your equipment?

Send the load, stroke and mounting envelope. We will come back with the model that fits and the drawing for it.

Ask an engineer
